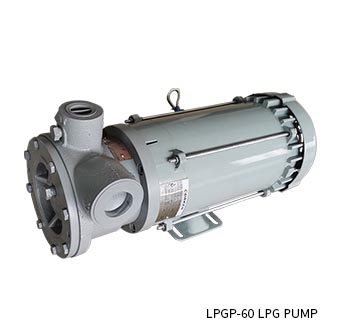

LPGP-60 Lpg pump
Product detail
Simple structure, easy operation and maintenance
Suspension impeller, low noise, long service life
220V power supply, convenient rural, factory, mobile
Conditions under the use
Apply to:
Lpg pump for automobile
The big tank of lpg leads the small tank
Filling of liquefied gas cylinder
Agricultural use of ammonia
Inlet: | 1-1/4"NPT | |||||
Outlet: | 1"NPT | |||||
Working Voltage: | 220V | |||||
Motor Speed: | 50Hz 2850rpm/60Hz 3450rpm | |||||
Motor Power: | 1.5HP | |||||
Max Working Pressure: | 25bar(2.5MPa) | |||||
Max Differential Pressure: | 7bar(0.7MPa) | |||||
Max Flow Rate: | 12gpm 45L/min | |||||
Temperature Range: | -32°C~107°C |
