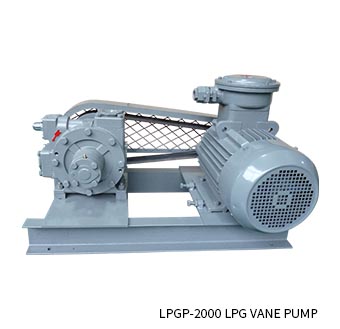

LPGP-2000 Lpg vane pump

Product detail

    LPGO-2000 Vane Truck Pump, for LPG,NH3 and other application, is specially designed to perform in such severe operating conditions as higt differential pressure, pump over speeding, poor suction conditions.


Advantage:

    1.Innovative cam design virtually eliminates cavitation

    2.New materials utilized in cam and blades and heavy duty                 bearings extend pump

    3.Single Mechanical seal, very easy seal replacement                         and maintenance

    4.Large diameter non-metallic pins are suitable for higher pump            speeds

Application:

   1.LPG and NH3 bulk transfer

   2.Auto-Fuel pumping

   3.LPG Cylinders


 Model: 680RPM
 Flow Rate: 18m³/h
 Power: 7.5KW 380V
 Inlet: NPT2”
 Outlet: NPT2”
 Max Speed: 800RPM
 Temperature Range: 7bar(0.7MPa)
 Max Working Pressure:
 -32°C~107°C
 Max Differental Pressure:
 28.6Bar
 Built-in relief valve: 12Bar
