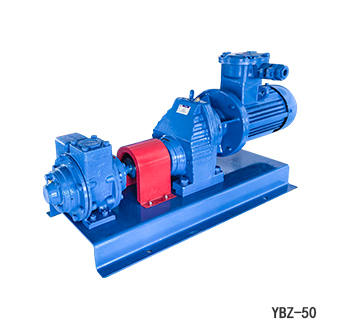

The Yb series self-priming rotary vane pump features a built-in relief valve and utilizes a vaned rotor for liquid transfer. Made of ductile iron with self-lubricating vanes, it offers excellent performance and can be used to transfer viscous and volatile liquids, while requiring less power than comparable pumps. It offers significant advantages in low-speed, high-flow transfers.

Model:	YBZ-50	YBZ-65	YBZ-80
Rated speed:	650RPM	650RPM	500RPM
Flow rate:	300L/min	460L/min	835L/min
Electric machine:	0.345MPa
Horse power :	3.2hp	4.7hp	11.2hp
Suction time to 5m height:	15s	10s	10s
Power:	2.2kw	4kw	7.5kw

Flow Rate
Model:	Speed: Flow rate: Flanges	650转RPM		600转RPM		550转RPM		500转RPM		450转RPM		400转RPM
		G/min	L/min	G/min	L/min	G/min	L/min	G/min	L/min	G/min	L/min	G/min	L/min
YBZ-50	50mm/2"	80	300	72	270	64	240	56	210	48	180	40	150
YBZ-65	65mm/2.5"	132	500	123	456	114	430	103	390	93	350	82	310
YBZ-80	80mm/3"	270	1025	250	950	22	860	198	750	184	700	158	600
