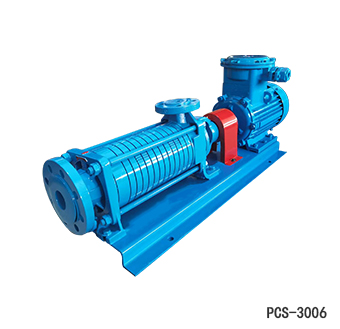

The centrifugal and side channel multistage pump, having a horizontal

configuration, is designed with 6 stages and 8 stages, shaft sealing by

mechanical seal without cooling. For handing LPG(liquid gas), the liquids involving high-differential pressure, low NPSH conditions and aerated liquids up to 50% gas, such as pumping from tanks. The use of a pre-compression turbine at the suction end makes it possible to obtain a very small required NPSH, so that this pump can be used under verydifficult suction conditions.

Model:	PCS3004	PCS3006	PCS3008
Direction of Rotation:	Anti-clockwise facing the end of the pumpdrive shaft
Max working pressure:	1.4MPa	2.0MPa	2.8MPa
Speed:	1450RPM
Power:	3KW 380V 50Hz	4KW  380V 50Hz	5.5KW  380V 50Hz
Ambient temperature:	~30~60°C
Stage:	Four stages	Six stages	Eight stages
Flow Rate:	7m³/h
Connecting flanges:	65 Inlet DN65    32 Outlet  DN32
Bearings:	Pump end sliding bearing, ball bearing drive end
Lubricatiom:	Sliding bearing lubrication by pump medium  pump end, drive the ball bearing lubrication
