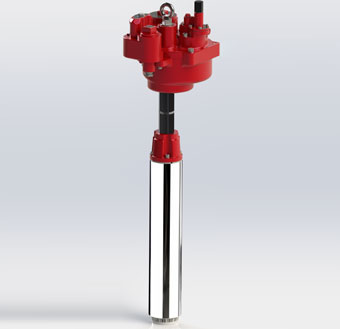

QYB-150
Product detail
characteristic
Compact structure, stable operation, low noise, large flow rate, low failure rate, long service life, easy installation and maintenance
Built in check valve, pressure relief valve and maintenance return valve, ensuring safety
Used for diesel, kerosene, gasoline and other oil products
The pump is directly immersed in the oil, and the oil is pushed to the fuel dispenser under pressure without gasification.
technical parameter
Power | 0.75HP | 1.5HP | 2HP |
Speed | 2800r/min | ||
Voltage | 220V | 220V/380V | |
Flow rate | 230L/min | 250 L/min | 280 L/min |
Nominal pressure | 0.23MPa | 0.25 MPa | 0.27 MPa |
Environment temperature | -25℃ ~+55 ℃ | ||
Noise | ≤68dB |
