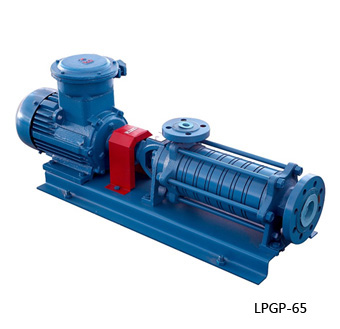

LPGP-65 LPG side channel multistage pump

Product detail

The LPGP-65 multistage pump, centrifugal and side channel, is designed with 6stage, having a horizontal configuration, shaft sealing by mechanical seal without cooling, for handling LPG (liquid gas) the liquids involving high-differential pressure, low NPSH conditions and aerated liquids up to 50% gas, such as pumping from underground tanks. The use of a pre-compression turbine at the suction end makes it possible to obtain a very small required NPSH, so that this pump can be used under very difficult suction conditions.
Application:
1.LPG cylinder filling
2.Pumping LPG from underground storage
3.Bulk filling operations
4.Loading /unloading of bulk trucks and transport trailers



Direction of rotation:

anti-clockwise facing the end of the pump drive shaft

Max. Pressure:

40 bars at 120℃

 Speed :

1450rpm

Power:

380V,50Hz,4KW

Ambient Temperature:

20℃～＋60℃

 Number of stages:

6

Connecting flanges:

DIN 2501, PN 40
as per DIN 2501, PN 40

Bearings :

sleeve bearing at the pump end, ball bearing at the drive end

Lubrication:

plain bearing at the pump end lubricated by the pumped product, ball bearing at the drive end lubricated for life.

 Model:

DB-65 w/motor

DB-65 without motor

Package:

1pcs/Wood Case

1pcs/Wood Case

Net Weight:

136kg

64kg

Gross Weight:

160kg

78kg

Dimension:

1170×420×450mm

1000×480×450mm
